Description

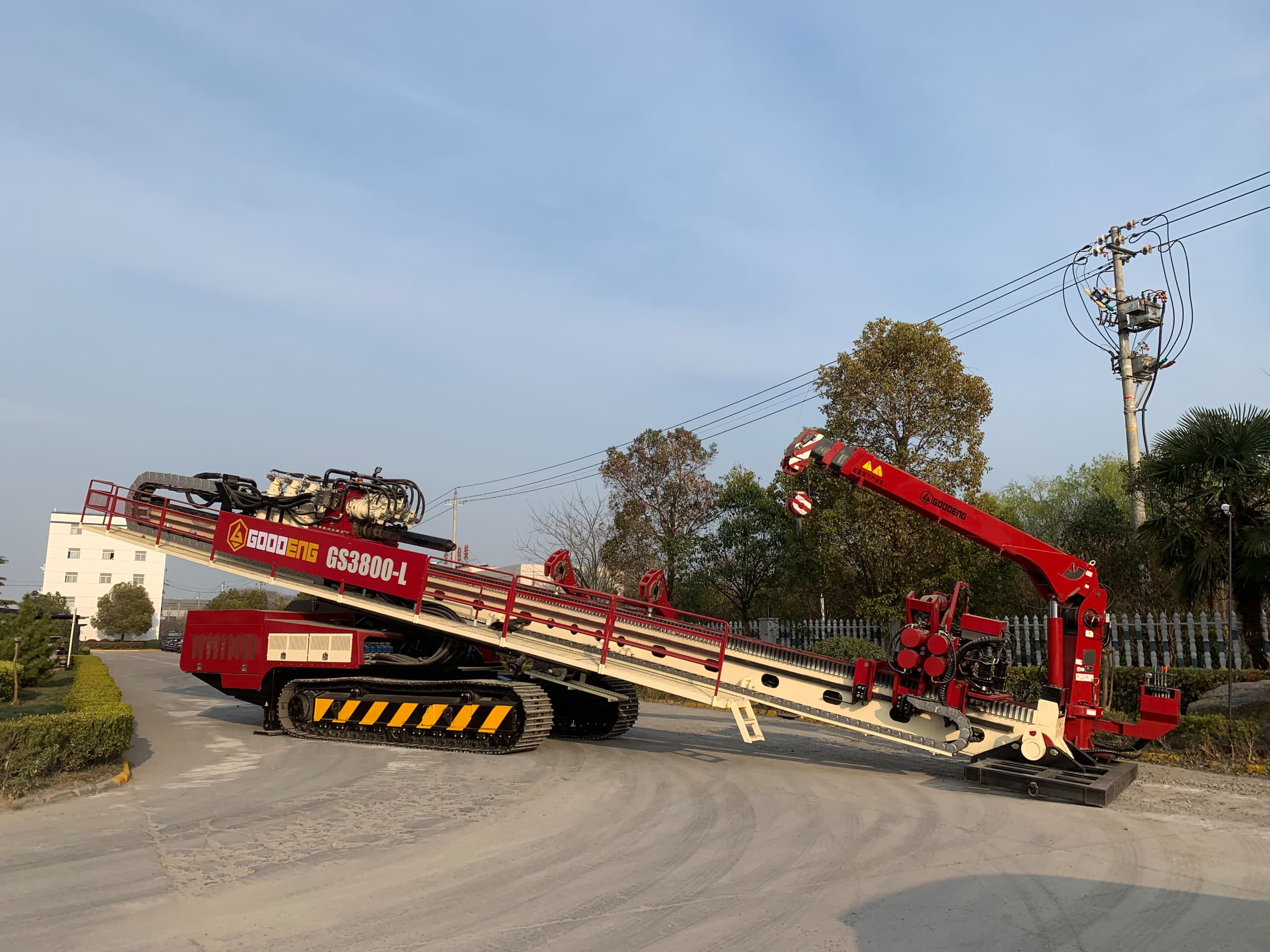

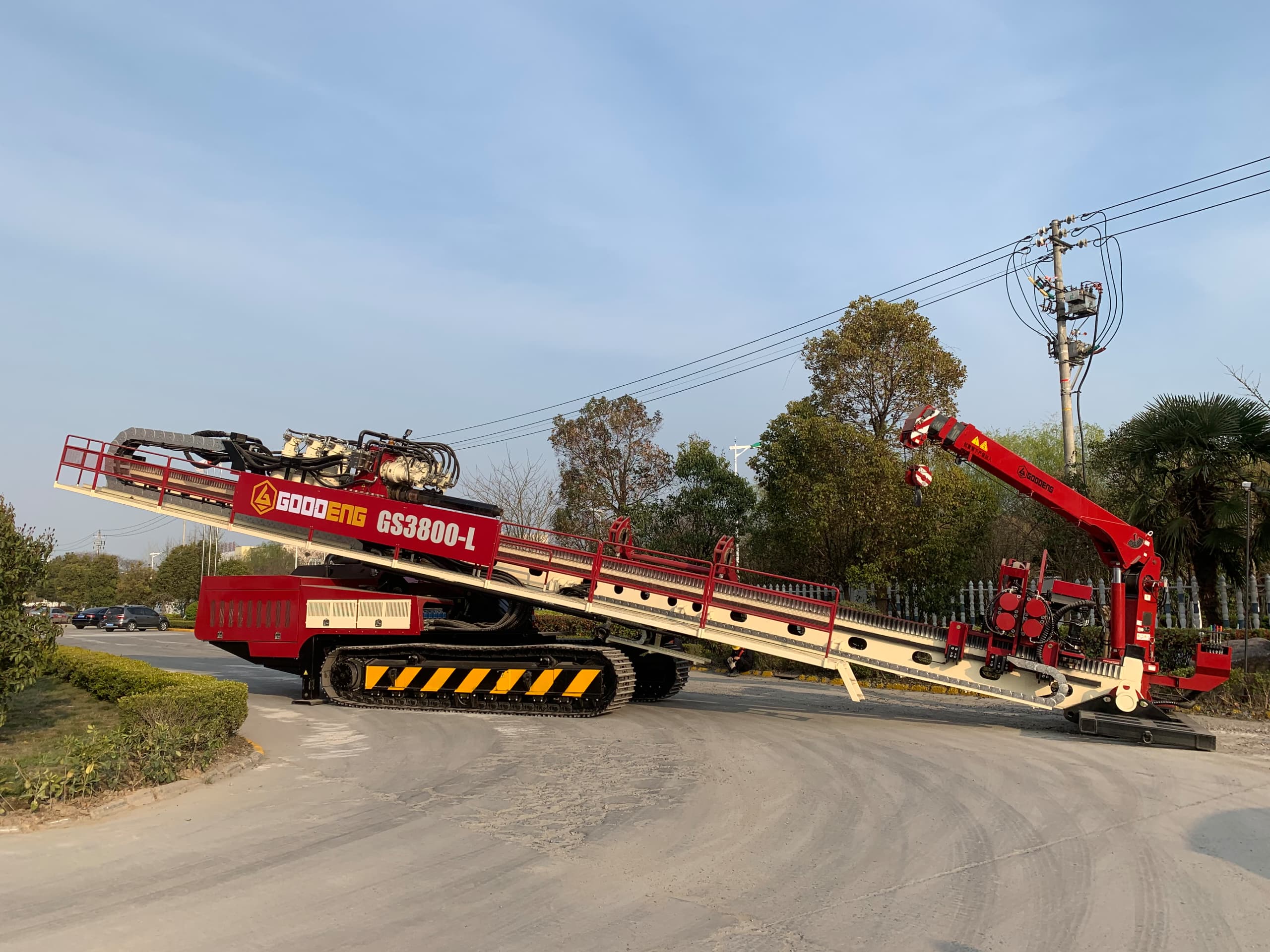

• The machine has a substantial weight of 58,500 kg, providing stability and support for demanding drilling tasks.
• It features a maximum thrust and pullback force of 3800 kN, allowing it to handle large-diameter boreholes and challenging soil conditions effectively.
• The machine is equipped with two engines delivering a total power of 2×264 kW, ensuring high performance and efficiency during operation.
• Its dimensions are 19,400 mm in length, 3,100 mm in width, and 3,550 mm in height, making it a robust unit suitable for various job sites.
• The machine offers a maximum thrust and pullback speed of 50 m/min and a maximum rotation speed of 96 r/min, enhancing productivity and operational efficiency.
• It supports a maximum mud flow of 250 L/min and can handle a maximum mud pressure of 8 MPa, supporting effective drilling and cooling.
• The machine allows for flexible drilling angles with an entry angle range of 9° to 16° and can tackle a maximum climbing gradient of 17°.
• For drill rod size, it accommodates Φ140/Φ168×9600 mm rods, and it supports a reaming diameter of up to Φ1800 mm, providing versatility in drilling applications.
• The machine includes a crane capacity of 5 tons and can manage a maximum crossing length of up to 2000 meters, expanding its scope of operation.
